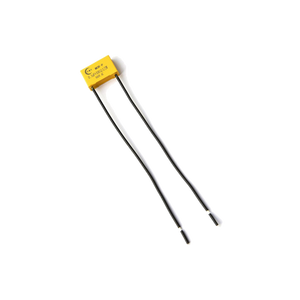

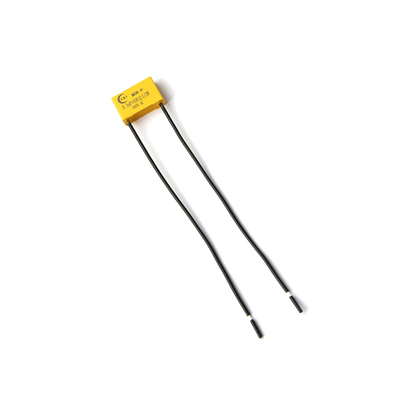

Shelly RC Snubber

Vendor: Home Tech Solution
Regular price: $4.95
Sale price: $4.95
Regular price
Unit price: per

Quantity

Quantity must be 1 or more

Short description

Energy absorbing circuits used to suppress voltage spikes caused by circuit's inductance when a switch opens.

Main applications

The RC Snubber finds common applications with inductive loads, such as:

Fans
Refrigerators
Air-conditioners
Washing machines
Tumble dryers
Transformers
LED light drivers
Other devices with electrical motors

Compatibility

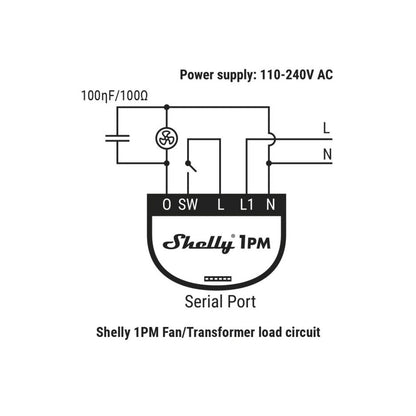

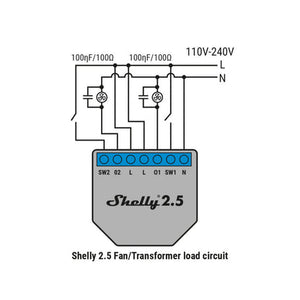

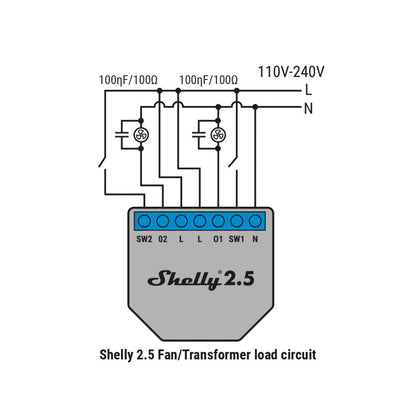

Connect RC Snubbers in parallel to inductive loads which you intend to switch with Shelly devices. Connect the RC Snubber as close to the inductive load as possible.

Technical Specifications

Dimension	Value
Capacitance:	0.1 µF
Resistance:	100 Ω
Power consumption:	1/2 W
Rated voltage:	600 VAC

WORKS WITH

The RC Snubber is a component that comprises a resistor (R) and a capacitor (C) connected in series. It effectively mitigates voltage spikes that can occur during the switching of inductive loads by providing a short-term alternative current path around the switching device, so that the inductive load is safely discharged. The RC Snubber can protect sensitive components of your Shelly device from voltage spikes and improve the overall performance and reliability of the connected circuits.

RESOURCES

Check the Knowledge Base for Shelly RC snubber here.
