PRODUCT HIGHLIGHTS

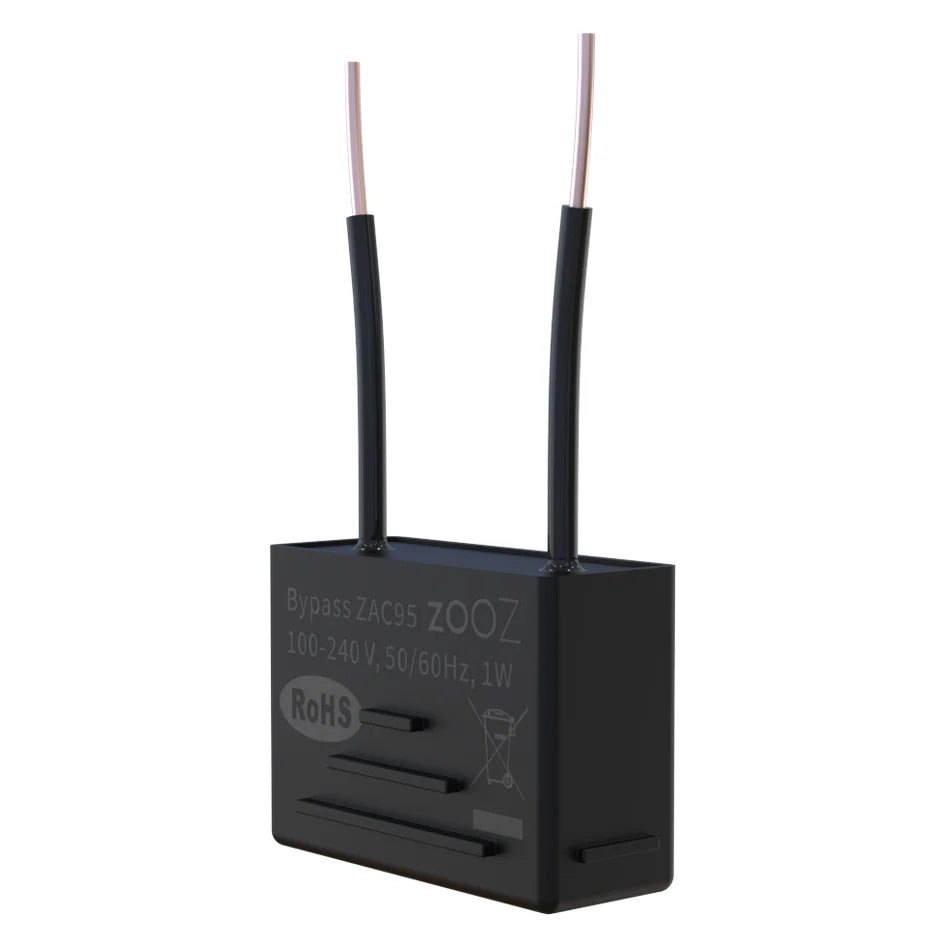

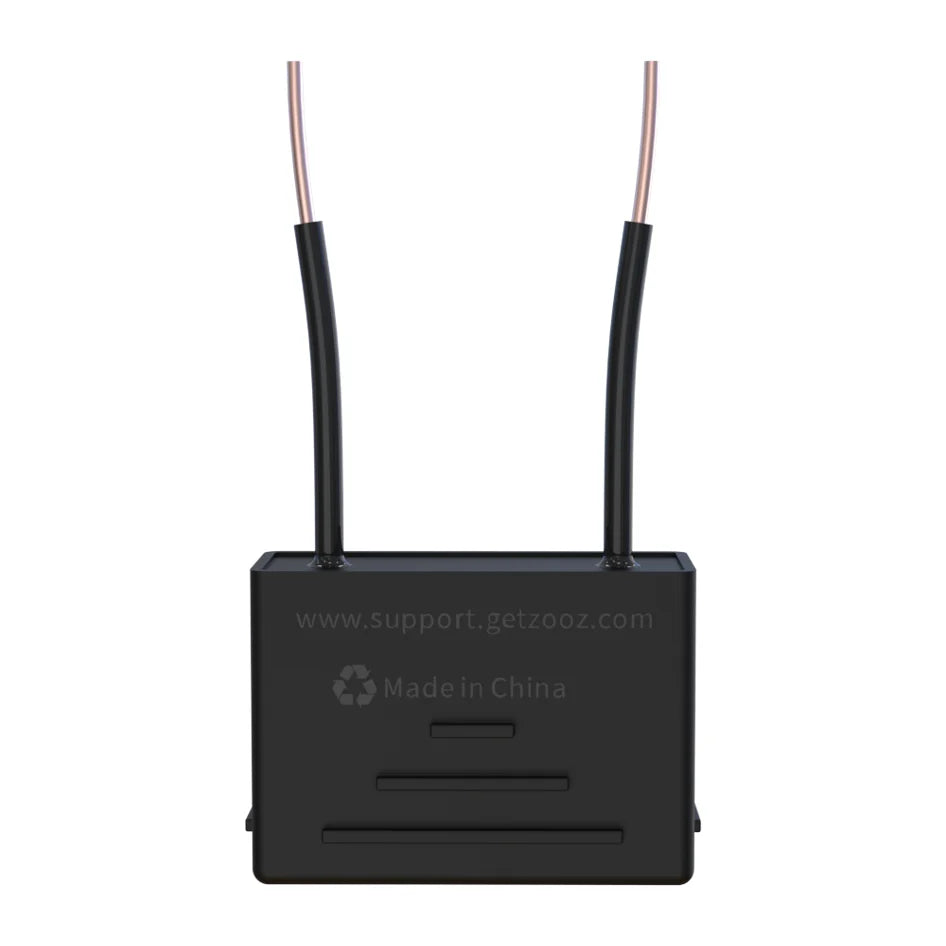

- Install the bypass accessory between your smart dimmer and the connected load to reduce flickering for selected LED bulbs.
- Pigtail wires included for quick installation
INSTALLATION
NOTE: Always turn the power off at the breaker when handling 120 V installations.
1. Connect the bypass according to the appropriate wiring diagram, making sure that your smart dimmer is already installed according to the instructions and fully functional.
2. Isolate all bare wires and/or terminal screws with electrical tape to minimize risk of accidental electrical short.
3. Carefully arrange the bypass and smart dimmer, along with all wires, back in the electrical box.
TECHNICAL DETAILS
- Power: 100-240V~, 50/60Hz
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only
