PRODUCT HIGHLIGHTS
- BETA RELEASE: You may need to update the firmware for this device, selected functionality or advanced features may not be available on your hub at the time of purchase
-
On/off Z-Wave control for high power loads up to 40A, perfect for 240VAC heavy duty installations
- Power monitoring: this device reports energy use in Watts, kWh, Amps, and Volts (reporting threshold and frequency are adjustable in advanced settings)
- Dry contact switch: connect and control from a wall switch ( NO VOLTAGE ON INPUT , see diagram)
- 800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity
- Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
- Indoor only: you will need a weatherproof box to install this device outdoors, see specs for details
- SmartStart and S2 authenticated security for a truly protected smart home
- Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh
- 5-year extended warranty (if registered within 30 days) and lifetime tech support
NOTE: Z-Wave gateway controller required - sold separately.
RECOMMENDED APPLICATIONS
- Pool Pumps
- Electric Water Heaters or Boilers
- Air Compressors
- Air Conditioners (e.g., Mini Splits)
- High-Power Outlets
- Shop Vacuums
- Commercial Lighting
- Heated Driveways

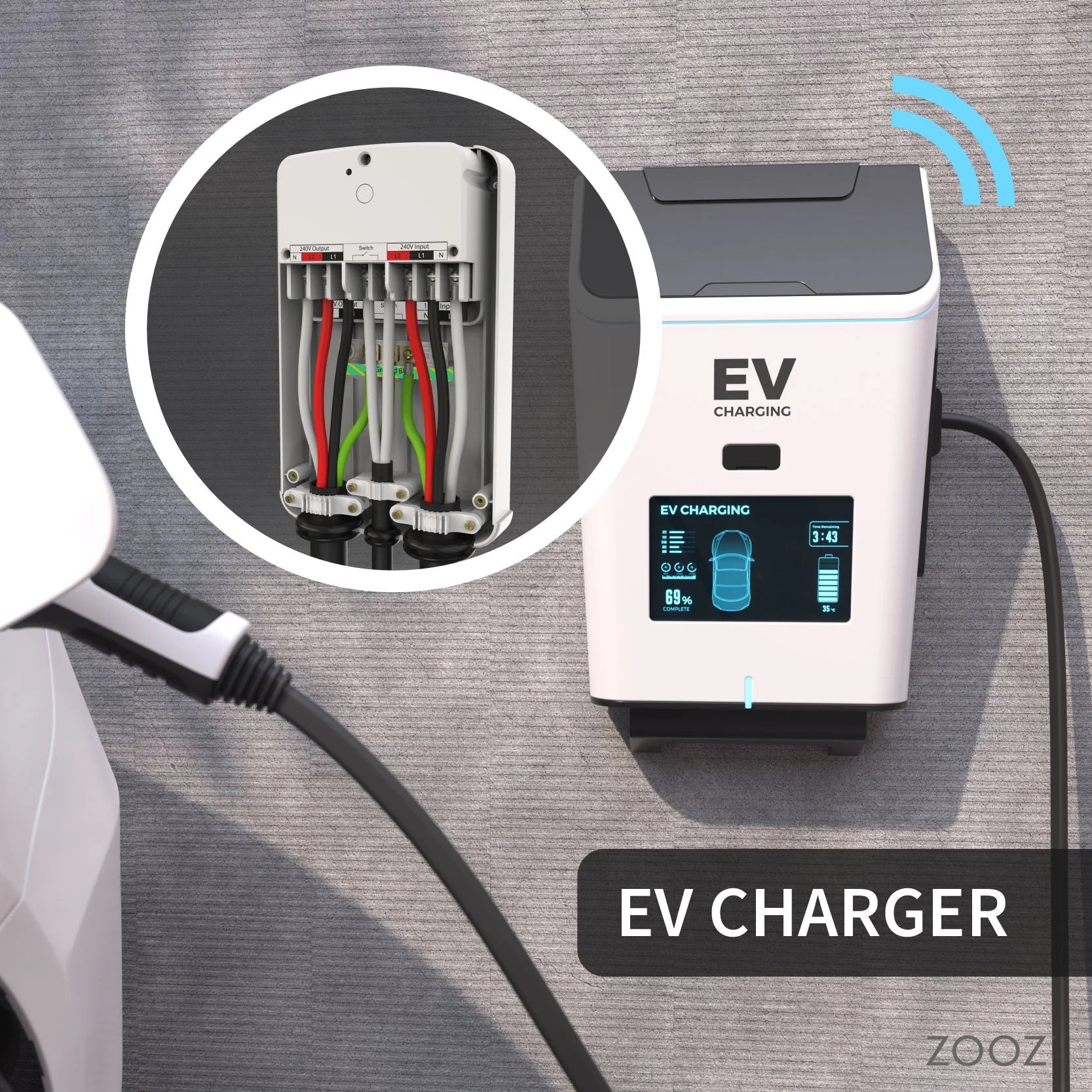

- EV Charging Stations
- Electric Heaters (garages, warehouses)
WORKS WITH
- Z-Box Hub (recommended for Zooz products)
- Ezlo Plus
- Ezlo Secure
- Home Assistant (Z-Wave JS)
- HomeSeer (with Z-Wave Plus plug-in)
- Hubitat (change device type to Generic Z-Wave Plus Switch manually)
- SmartThings (install the custom Lua driver for advanced functionality)
NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
TECHNICAL DETAILS
- Z-Wave Region: US/CA/MX
- Power: 120-240 VAC, 60 Hz
- Maximum Load: Resistive Load: 40 A, 9600 W; Inductive Load: 4HP - 5,000 Cycles, 3HP - 20,000 Cycles
- Standby power consumption: 1W
- Operating Temperature: 32° – 104° F
- Range: Up to 300 feet (or up to 1300 feet with ZWLR)
- Installation and Use: Indoor only (IPX3)

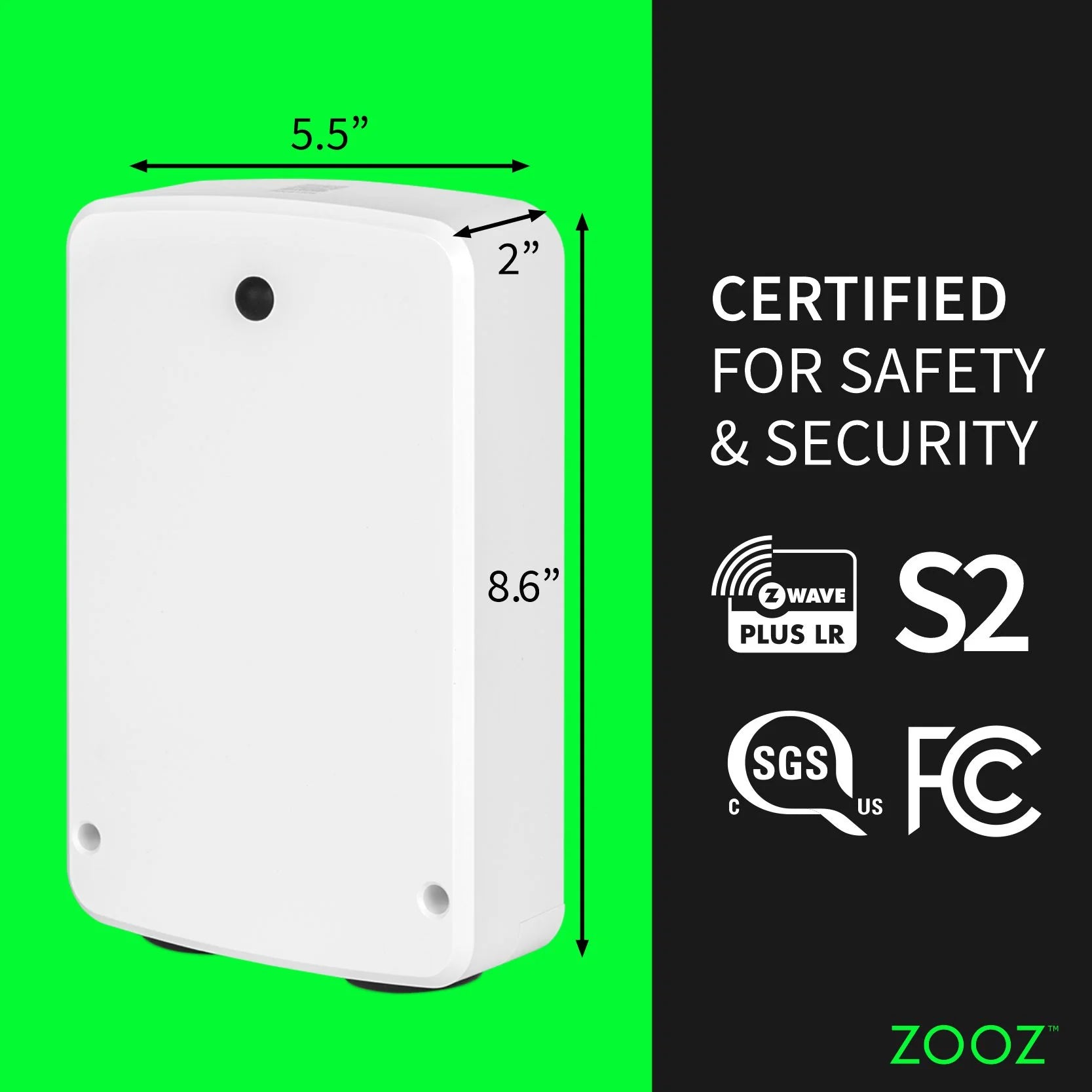

- Dimensions: 8.6” x 5.5” x 2”
RESOURCES

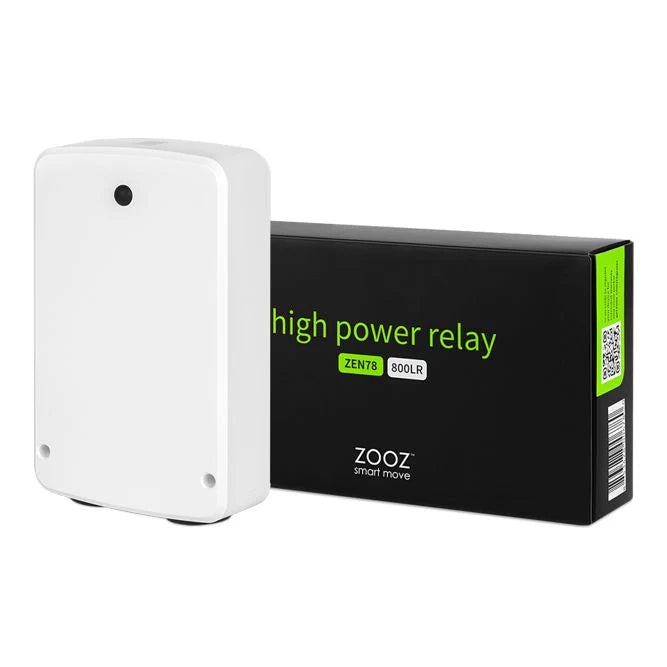

Download the Manual for Zooz Z-Wave Long Range High Power Relay ZEN78 800LR (PDF)
INSTALLATION
It is recommended that a licensed electrician install any 120-240V high-power device in accordance with the appropriate wiring diagram.
How to include the High Power Relay to your smart home network?
How to add the High Power Relay to the Z-Box Hub
How to add the High Power Relay to SmartThings
How to add the High Power Relay to Home Assistant
How to add the High Power Relay to Hubitat
How to add the High Power Relay to HomeSeer
