PRODUCT HIGHLIGHTS
- BETA RELEASE: You may need to update the firmware for this device, selected functionality or advanced features may not be available on your hub at the time of purchase
-
On/off Z-Wave control for 100-240VAC 50/60 Hz lights up to 5A (don't connect to fans or receptacles)
-
Dry contact switch: connect and control from a wall switch (no Voltage, see diagram), you need load and line in the same box for 3-way installations
-
800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity
- Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
- Super compact design: fits the most crowded installations, perfect for stacked switches or shallow boxes
- SmartStart and S2 authenticated security for a truly protected smart home
- Installs behind the existing wall switch (no Voltage!) or at the light fixture (if neutral is not available in the switch box)
- Great if you'd like to leave your favorite wall switch style or color but add Z-Wave to it
- Smart bulb mode: disable manual and/or Z-Wave control to control your smart bulbs via Z-Wave only without cutting power to them
-
Scene control: choose from 7 multi-tap triggers to expand the functionality of the connected switch (available on hubs that support multi-tap triggers*)
- Compatible with quality LED bulbs (don't connect to ballast tube lights, switched receptacles, or fans; NOTE: FEIT bulbs are not recommended)
- Multicolor LED indicator for easier troubleshooting
- Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh
- 5-year extended warranty (if registered within 30 days) and lifetime tech support
NOTE: Z-Wave gateway controller required - sold separately.
WORKS WITH
- Z-Box Hub (recommended for Zooz products)
- Ezlo Plus
- Ezlo Secure
- Home Assistant (Z-Wave JS)
- HomeSeer (with Z-Wave Plus plug-in)
- Hubitat (change device type to Generic Z-Wave Plus Switch manually)
- SmartThings (install the custom lua driver for advanced functionality)
NOTE: If you don't see your Z-Wave controller on the list above, please contact us before you purchase this product.
TECHNICAL DETAILS
- Z-Wave Region: US/CA/MX
- Power: 120-240 VAC, 50/60 Hz
-
Maximum Loads:
- 120V: 5A resistive, 500W incandescent, 150W LED bulbs
- 240V: 5A resistive, 1000W incandescent, 300W LED bulbs
- Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)

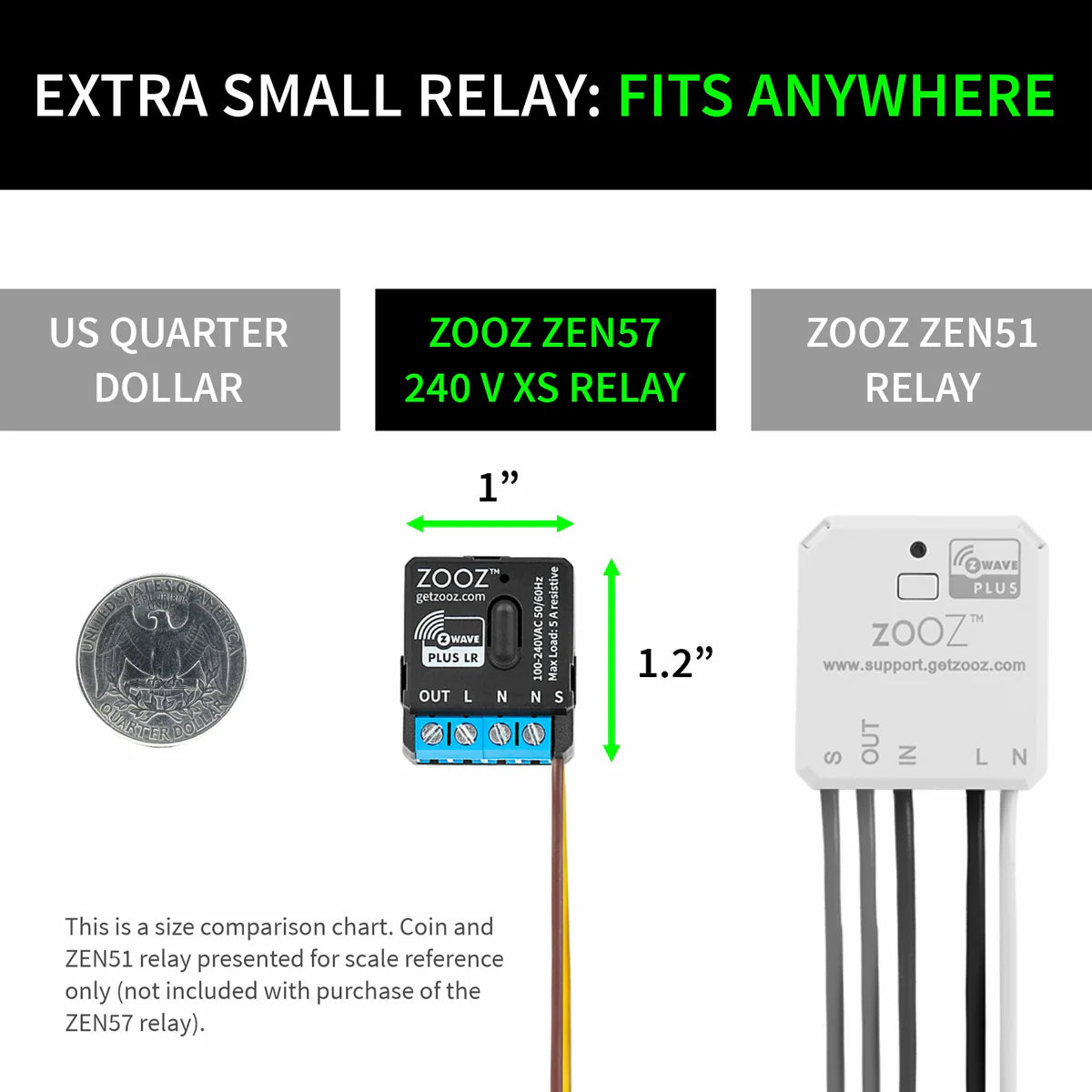

- Dimensions: 1.2” x 1” x 0.6”
-
Operating Temperature: 32-104° F (0-40° C)
- Installation: Indoor use only
RESOURCES
Download the Manual for Zooz Z-Wave Long Range 240V XS Relay ZEN57 800LR (PDF)
