Short description

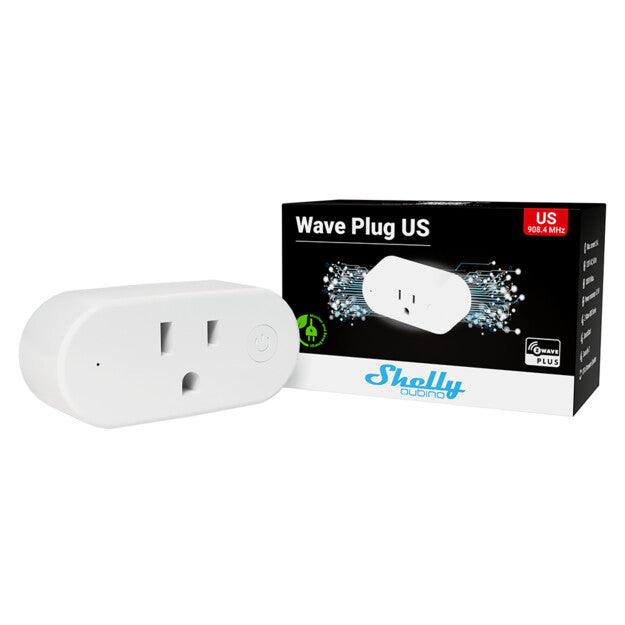

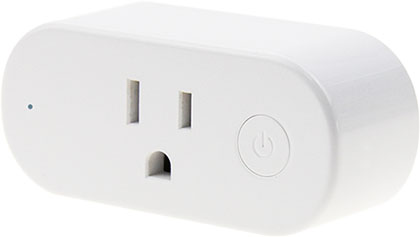

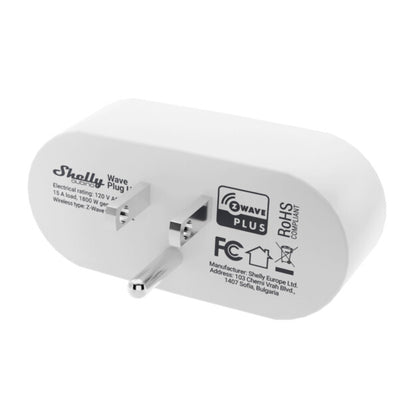

Wave Plug US is a smart plug that enables automation and remote control of any connected electrical appliance (up to 1800 W at 15 A) at home while also monitoring its power consumption
Key Features
- Supports up to 15 A at 120 V AC
- Built-in surge protection and overheat protection
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
- Fast and simple installation in most electrical boxes and switches
- *A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Technical Specifications
|
Power supply |
120 V ±10 %, 60 Hz |
|
Power consumption |
< 0.3 W |
|
Power measurement [W] |
Yes |
|
Max switching voltage AC |
140 V |
|
Max switching current AC |
15 A |
|
Overheating protection |
Yes |
|
Overcurrent protection |
Yes |
|
Overvoltage protection |
Yes |
|
Distance |
up to 40 m indoors (131 ft.) |
|
Z-Wave repeater: |
Yes |
|
CPU |
Z-Wave S800 |
|
Z-Wave frequency band |
908,4 MHz |
|
Maximum radio frequency power transmitted in frequency bend(s) |
< 25 mW |
|
Size (H x W x D) |
38x84x52 ±0.5 mm / 1.5x3.3x2.0 in ±0.02 in |
|
Weight |
70 ±1 g / 2.47 ±0.04 oz |
|
Mounting |
Wall socket |
|
Shell material |
Plastic |
|
Color |
White |
|
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
|
Humidity |
30% to 70% RH |
|
Max. altitude |
2000 m / 6562 ft. |
| Certifications | US/CA: ETL |
