Short description

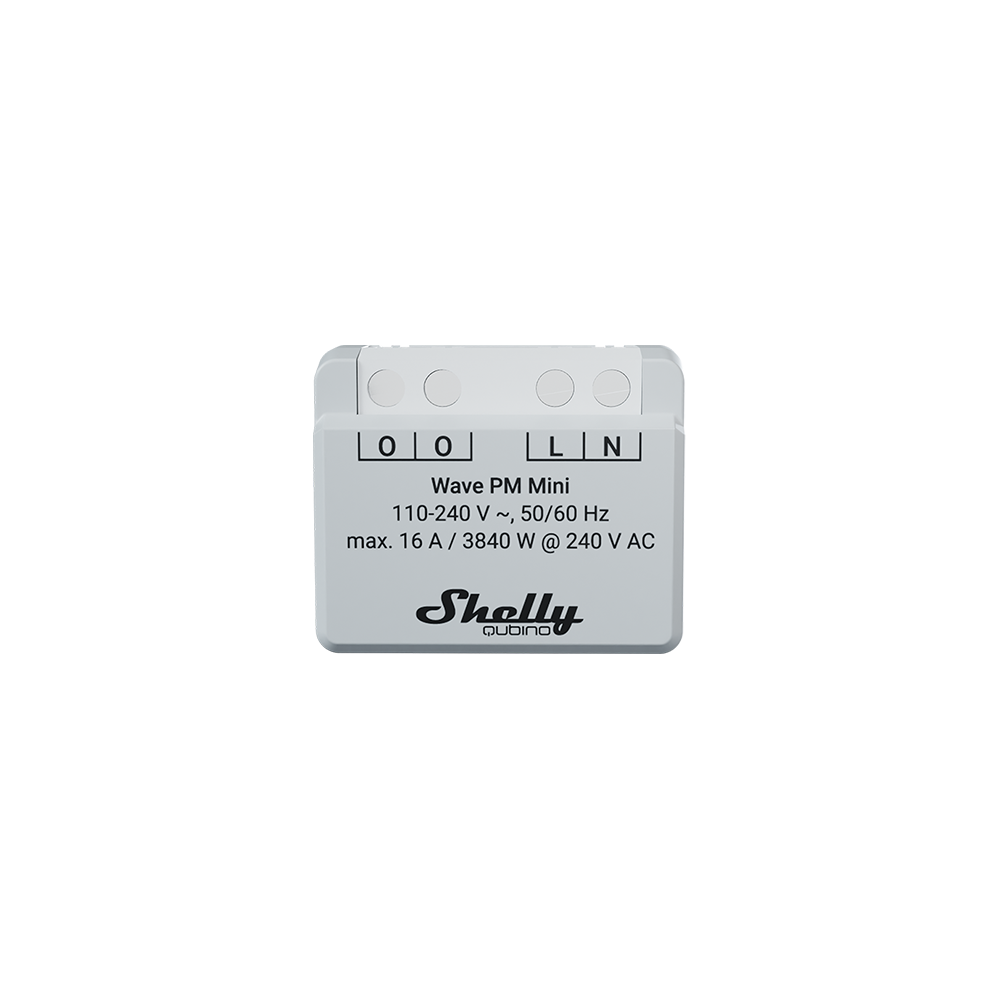

The Device is a small form factor smart power meter, which allow remote monitoring of electric appliances power consumption with a load of up to 16 A.
Key Features
- Supports up to 16 A at 240 V AC
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
- Fast and simple installation in most electrical boxes and switches
- *A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
Technical Specifications
|
Power supply |
110 - 240 V AC, 50/60 Hz |
|
Power consumption |
< 0,3 W |
|
Power measurement (W) |
Yes |
|
External protection |
16 A, tripping characteristic B or C 6 kA interrupting rating Energy limiting class 3 |
|
Max. measurement power |
3840 W |
|
Max. measurement current |
16 A |
|
Overheating protection |
Yes |
|
Distance |
Up to 40 m indoors (131 ft.) (depends on local condition) |
|
Z-Wave® repeater |
Yes |
|
CPU |
Z-Wave® S800 |
|
Z-Wave® frequency bands |
908.4 MHz |
|
Size (H x W x D) |
29x35x16 ± 0.5 mm / 1.11x1.35x0.63 ± 0.02 in |
|
Weight |
13 ± 1 g / 0.46 ± 0.04 oz |
|
Mounting |
Wall box |
|
Screw terminals max. torque |
0.4 Nm / 3.54 lbin |
|
Conductor cross section |
0.5 to 1.5 mm² / 20 to 16 AWG |
|
Conductor stripped length |
5 to 6 mm / 0.20 to 0.24 in |
|
Shell material |
Plastic |
|
Color |
Light grey |
|
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
|
Humidity |
30% to 70% RH |
|
Max. altitude |
2000 m / 6562 ft. |
